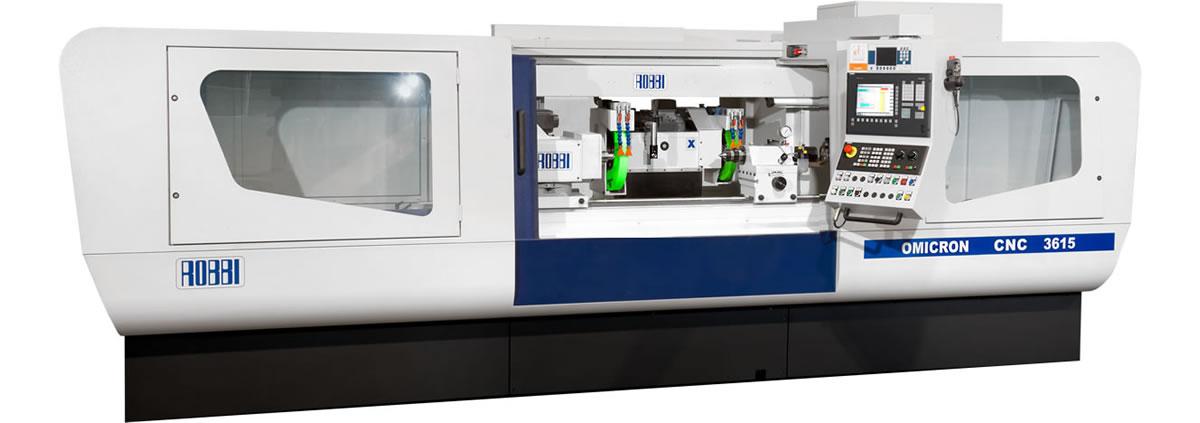

OMICRON 36

Code: ROB06
Brand: ROBBI
  • The CNC versions were developed in response to needs for medium-high production volumes.
  • Equipped with the latest-generation of SIEMENS 840D sl control system.
  • The work cycle can be optimised in-process with geometrical and working parameters.
  • The machine can be equipped with automatic measurement devices to process complex components.
  • The CNC version allows the operator to profile the grind wheel in relation to geometries specifically created for the type of production required.
  • High precision crowning operations can be performed by equipping the machines with a third interpolated axis and a bespoke software for this processes.
Max distance between centres mm 630 1030 1530 2030
Max grinding length mm 630 1030 1530 2030
Height of centres over table mm 180/230 !
Max weight on centres kg 250/300 !
Max cantilever weight (150 mm from Workhead spindle nose) kg 80/100 !
Table speed mm/min 0-5000
Max table swivel on either side gradi +9° -5° +8° -4° +7° -3° +6° -2°
Rotation speed rpm 0-600
Internal centre taper MT 5
External centre taper ASA 5
Spindle hole diameter mm 31
Spindle stroke mm 50
Spindle diameter mm 70
Internal centre taper MT 4
Grinding wheel dimensions mm 450×127
Min.—Max. width of wheel mm 20-80
Hole diameter internal grinding spindle mm 80  !
Wheelhead kW 5,5/7,5 !
Workhead kW 1,5
