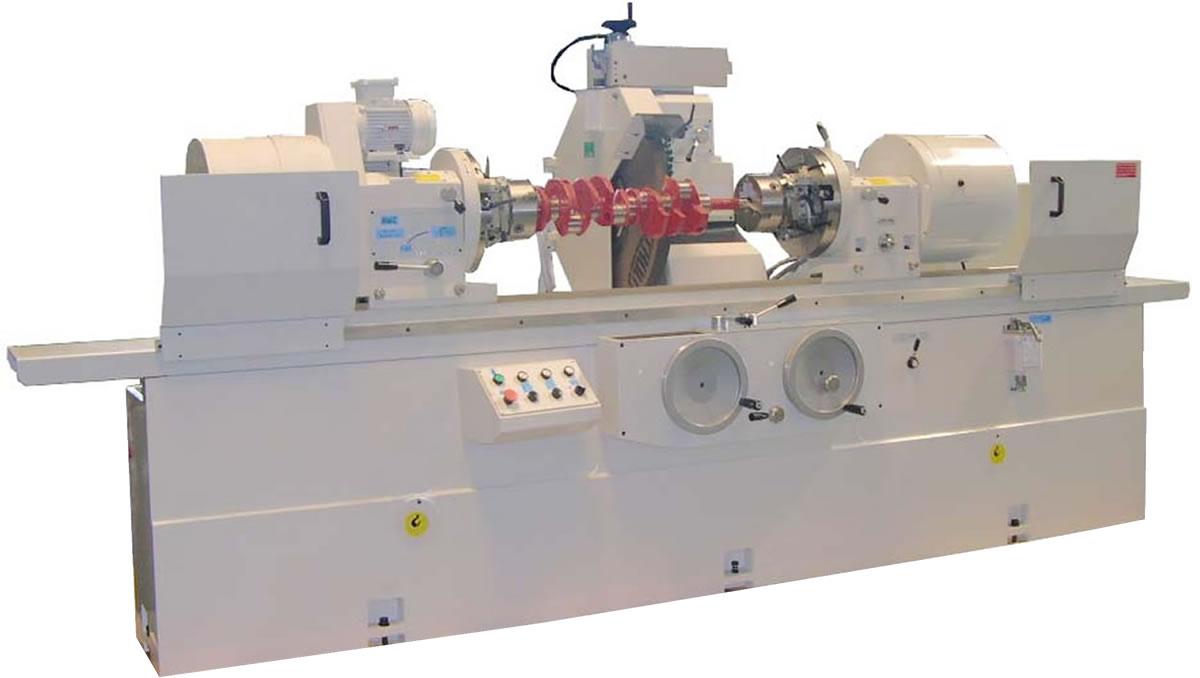

REX 1500

Code: ROB04

Brand: ROBBI

Distance between centers	mm.	1550
Distance between chucks	mm.	1540
Height of centers over table	mm.	250
Swing over table	mm.	500
Max. offset of centers	mm.	100
Max. grinding diameter	mm.	180
Fast hydraulic wheelhead traverse	mm.	110
Hand micrometric wheelhead feed	mm.	150
Hand micrometric wheelhead feed, graduation	mm.	0,005
Wheelhead feed per reverse	mm.	1
Hand micrometric worktable traverse per reverse	mm.	11
Fast hydraulic worktable traverse	m. / min.	3
Grinding wheel speeds	r.p.m.	900-1000
Max. grinding wheel diameter	mm.	710
Min.-Max. width of grinding wheel	mm.	19-50
Diameter of chucks	mm.	180
Chucks holding diameter	mm.	220
Rest capacity	mm.	30 -100
Workhead spindle speeds	r.p.m.	20 – 60
Max. weight on centers	Kg.	200
Max. weight on rests	Kg.	500
Lenght x width x height	m.	3.9 x 1.5 x 1.7
Approx. net weight	Kg.	3300
